Smoooooth Drag Installation Instructions…

Courtesy of Jack Erskine’s Precision Reel Engineering,
Cairns, Australia

   Carbontex® can be installed dry OR with a LIGHT coating of Cal’s Universal Reel and Drag grease. This is the only grease we recommend. It can be used on the drags and everywhere else in the reel grease is desired. The majority of anglers prefer the greased drag system. All old grease should be cleaned out of the reel before re-greasing with Cal’s grease. A LIGHT coating of Cal’s grease on the Carbontex® is recommended if you are likely to get your reels very wet, it will help waterproof the drag system. Very light means you should be able to leave a finger print in the grease on the surface of the drag. When it comes to drags more grease is NOT better!

   When components in the drag system are thoroughly cleaned with a specialist cleaning solvent such as white sprits, dry cleaning solvent, disc brake parts cleaner ( auto supply ) or any totally evaporating agent that leaves a dead dry and metallic oil free surface. ( Do not use Kero, metho, diesel or acetone, etc. ) Insure that all metal surfaces in gears & metal drag washers that come in contact with friction drag washers are smooth, polished & burr free. If any components are damaged or in doubt it is better to replace at this stage. Make sure metal drag washers are flat and not cupped. If reusing metal drag washers polish them up with #600 fine sandpaper, or crocus cloth.

   Also ensure that you install all of the drag washers supplied in the replacement kit. Some anglers neglect to replace the drag washer located beneath the main gear between the main gear and shaft carrier base plate. This washer is an extremely important part necessary to ensure proper drag performance. Lubricate very lightly.

CONVENTIONAL

SPINNING

Smooth Drag Carbontex®

Drags and Settings: The drag system on a reel is an often overlooked but very important part of your ability to catch a fish. It helps tire out the fish and helps keep your line from breaking off.


So what is a drag? It’s a sort of a clutch which is supposed to let the line unwind in a controlled manner off the reel when a fish ( or anything else ) pulls so hard that the line is in danger of breaking. There are many different drag arrangements on different kinds or brands of reels. They are all adjustable so you can control the amount of pull it takes to make the line peel off the spool but there is a wide variation from one reel to the next in how precise the adjustment can be and in how smoothly the line slips out. A drag which feeds line out smoothly is very valuable. When a fish suddenly strikes or when an already hooked fish makes a sudden run you want the drag to immediately feed line with no jerks or catches. A sticky drag can cause a line to break in a hurry. Have you ever heard this fish story: “I got a strike so hard that my line was broken before I could do a thing?” We’ve heard it a lot and always think the same thing: If the drag on that reel was set right and working smoothly then the fish should never have been lost. The drag should feed line out so that the line never breaks.

There are several different drag set ups. Most involve a series of fiber and metal washers which spin against each other when the drag slips.

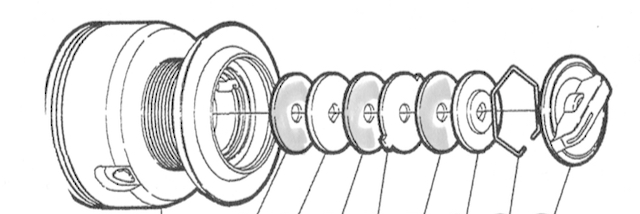

You’ll need to service your drag system periodically to keep it functioning smoothly. Learn how to disassemble the set of washers so you can clean or replace them as necessary. Do this at least a couple of times per year or more, depending on how much you fish, more often if the drag starts to get sticky. This is typical stack for a star drag reel. Also some spinning reels.

The Carbontex® material is made in layers, there is a fine weave and a coarse weave, which is stacked together accordingly to make the proper thickness.   There could be two layers of coarse weave, 1 layer coarse 1 layer fine, or just fine weave, depending on the thickness needed for each model.  There may any combination of these in each set to work in your reel.  It does not matter how you stack or which way they face.

It’s all the same material, just different weaves.  Performance is the same. info@smoothdrag.com

Ambassadeur washers

3902/39023, 079, 053-B sets are for older 4000, 5000, and 6000 series reels, depending on year of manufacturer. This should help you compare to what is in your reel. The smaller washer in the C3/C4 set belongs under the gear, and you will notice ours is larger than what you will find in your reel. There are also a handful of models that will use some other combination of what you find below. You can of course purchase any combination that works in your reel.
